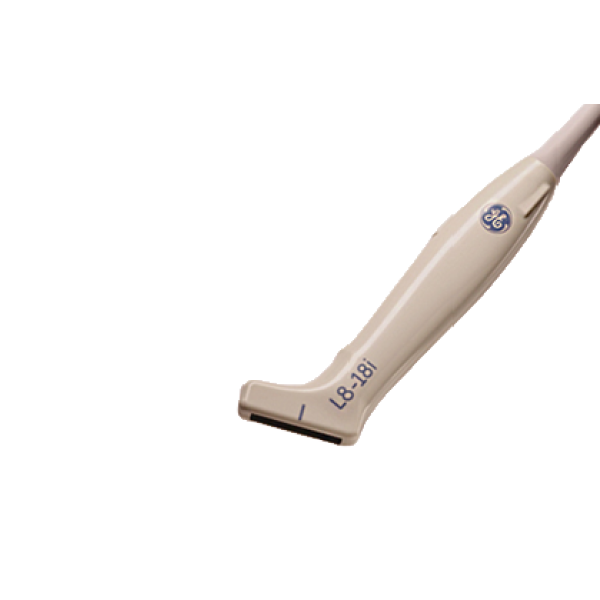

GE L8-18i-RS

Description

The GE L8-18i-RS linear probe is designed for ultrasound examinations that require high resolution and accuracy. With a frequency range of 8 to 18 MHz, it provides detailed imaging of superficial organs and tissues. This probe is ideal for diagnosing vascular diseases, dermatology, orthopedics, and other areas requiring high-frequency ultrasound. The GE L8-18i-RS is equipped with advanced technologies that ensure clear images even in complex examinations. Its compact and lightweight design makes it easy to use and provides comfort for both the doctor and the patient.

Technical Specifications

Frequency range: 8–18 MHz
Probe type: Linear
Operating frequency: 12 MHz
Number of elements: 192
Dimensions: 19 × 32 cm
Weight: 250 g
Power supply voltage: 5 V
Operating temperature range: 0–40 °C
Water resistance rating: IPX7

Quick User Guide

Connect the GE L8-18i-RS linear probe to the corresponding ultrasound system, following the instructions in the user manual.
Check the probe for any dirt or damage before use.
Apply ultrasound gel to the examination area to improve image quality.
Select the appropriate operating mode on the ultrasound system for the area being examined.
After completing the examination, clean the probe from any residual gel and store it in a safe, damage-free location.
