Description

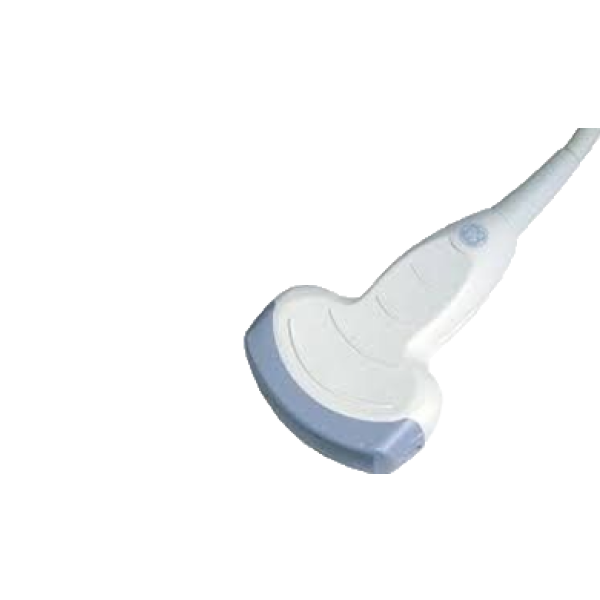

The GE C4-8-D convex probe is designed for performing ultrasound examinations in various medical fields. It uses convex scanning technology, providing a wide field of view and excellent image detail, which is ideal for diagnosing deep tissues. Due to its frequency characteristics, the probe is perfect for examining abdominal organs, the heart, and other internal structures. The GE C4-8-D is used for different types of scanning, including high-precision and deep examinations. This probe has established itself as a reliable and high-quality tool in clinical practice.

Technical Specifications

• Frequency Range: 4-8 MHz
• Scanning Type: Convex
• Working Distance: 3-30 cm
• Probe Dimensions: 76 x 35 x 30 mm
• Weight: 270 g

Brief Operating Instructions

1. Connect the GE C4-8-D convex probe to the ultrasound machine, following the manufacturer’s instructions.
2. Adjust the ultrasound machine’s settings depending on the type of examination (select frequency, depth, and scanning mode).
3. Apply ultrasound gel to the probe to enhance signal transmission.
4. Place the probe on the patient’s skin and move it to obtain the necessary images.
5. After completing the examination, carefully clean the probe of gel and disinfect it with an antiseptic solution.

Areas of Application

• Diagnosis of abdominal organ diseases
• Heart and vascular examinations
• Evaluation of the uterus and ovaries
• Prostate examination
• Obstetrics and gynecology for fetal investigation
